Context Model

Schema
ArcadiaModellingArtefacts.xsd

schema location:	..\ArcadiaModellingArtefacts.xsd
attributeFormDefault:	unqualified
elementFormDefault:	qualified

Elements

CEPCID

ChainableEndpointCategory

CNID

CNMetric

CNMetrics

Component

ConfigurationParamaterDescription

ConfigurationParameter

ConfigurationParameterDefaultValue

ConfigurationParameterName

ConfigurationParameters

ConfigurationParameterType

DescriptiveCNMetadata

DescriptiveGSGMetadata

DescriptiveSGMetadata

ECEPID

ExposedChainableEndpoint

ExposedChainableEndpoints

GNID

GraphDependencies

GraphDependency

GraphNode

GraphNodeDescriptor

GroundedGraphNode

GroundedGraphNodeDescriptor

GroundedServiceGraph

GSGID

HigherIsBetter

MaxValue

MetricDescription

MetricName

MetricValueType

MinValue

MutableAfterStartup

NID

RequiredChainableEndpoints

RPID

RuntimePolicy

RuntimePolicyDescriptor

ServiceGraph

SGID

UnitOfMeasurement

element
CEPCID

diagram
type	xs:string
properties	content  simple
used by	elements  ChainableEndpointCategory GraphDependency
annotation	documentation This unique Exposable Chainable Endpoint Category Identifier is a hex String that identifies uniquely the chainable category
source	<xs:element name=“CEPCID“ type=“xs:string“> <xs:annotation> <xs:documentation>This unique Exposable Chainable Endpoint Category Identifier is a hex String that identifies uniquely the chainable category</xs:documentation> </xs:annotation> </xs:element>

element

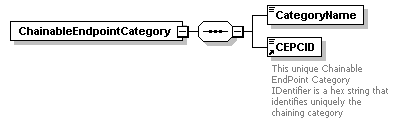

ChainableEndpointCategory

diagram
properties	content  complex
children	CategoryName CEPCID
used by	elements  ExposedChainableEndpoint RequiredChainableEndpoints
source	<xs:element name=“ChainableEndpointCategory“> <xs:complexType> <xs:sequence> <xs:element name=“CategoryName“ type=“xs:string“/> <xs:element ref=“CEPCID“> <xs:annotation> <xs:documentation>This unique Chainable EndPoint Category IDentifier is a hex string that identifies uniquely the chaining category</xs:documentation> </xs:annotation> </xs:element> </xs:sequence> </xs:complexType> </xs:element>

element
ChainableEndpointCategory/CategoryName

diagram
type	xs:string
properties	content  simple
source	<xs:element name=“CategoryName“ type=“xs:string“/>

element
CNID

diagram
type	xs:string
properties	content  simple
used by	elements  DescriptiveCNMetadata GraphNode
annotation	documentation This unique Component ID is a hex String that identifies uniquely the Component in the ARCADIA Repository
source	<xs:element name=“CNID“ type=“xs:string“> <xs:annotation> <xs:documentation>This unique Component ID is a hex String that identifies uniquely the Component in the ARCADIA Repository</xs:documentation> </xs:annotation> </xs:element>

element

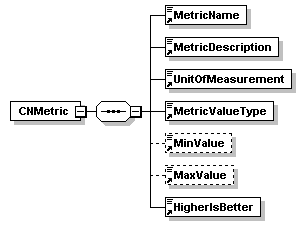

CNMetric

diagram
properties	content  complex
children	MetricName MetricDescription UnitOfMeasurement MetricValueType MinValue MaxValue HigherIsBetter
used by	element  CNMetrics
source	<xs:element name=“CNMetric“> <xs:complexType> <xs:sequence> <xs:element ref=“MetricName“/> <xs:element ref=“MetricDescription“/> <xs:element ref=“UnitOfMeasurement“/> <xs:element ref=“MetricValueType“/> <xs:element ref=“MinValue“ minOccurs=“0“/> <xs:element ref=“MaxValue“ minOccurs=“0“/> <xs:element ref=“HigherIsBetter“/> </xs:sequence> </xs:complexType> </xs:element>

element
CNMetrics

diagram
properties	content  complex
children	CNMetric
used by	element  Component
source	<xs:element name=“CNMetrics“> <xs:complexType> <xs:sequence> <xs:element ref=“CNMetric“ maxOccurs=“unbounded“/> </xs:sequence> </xs:complexType> </xs:element>

element

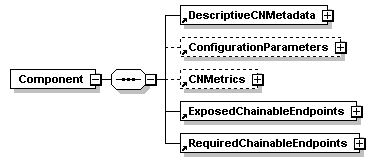

Component

diagram
properties	content  complex
children	DescriptiveCNMetadata ConfigurationParameters CNMetrics ExposedChainableEndpoints RequiredChainableEndpoints
source	<xs:element name=“Component“> <xs:complexType> <xs:sequence> <xs:element ref=“DescriptiveCNMetadata“/> <xs:element ref=“ConfigurationParameters“ minOccurs=“0“/> <xs:element ref=“CNMetrics“ minOccurs=“0“/> <xs:element ref=“ExposedChainableEndpoints“/> <xs:element ref=“RequiredChainableEndpoints“/> </xs:sequence> </xs:complexType> </xs:element>

element
ConfigurationParamaterDescription

diagram
type	xs:string
properties	content  simple
used by	element  ConfigurationParameter
source	<xs:element name=“ConfigurationParamaterDescription“ type=“xs:string“/>

element

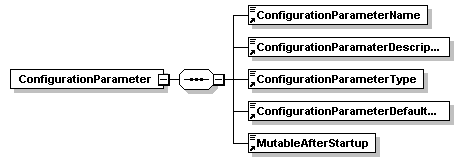

ConfigurationParameter

diagram
properties	content  complex
children	ConfigurationParameterName ConfigurationParamaterDescription ConfigurationParameterType ConfigurationParameterDefaultValue MutableAfterStartup
used by	element  ConfigurationParameters
source	<xs:element name=“ConfigurationParameter“> <xs:complexType> <xs:sequence> <xs:element ref=“ConfigurationParameterName“/> <xs:element ref=“ConfigurationParamaterDescription“/> <xs:element ref=“ConfigurationParameterType“/> <xs:element ref=“ConfigurationParameterDefaultValue“/> <xs:element ref=“MutableAfterStartup“/> </xs:sequence> </xs:complexType> </xs:element>

element
ConfigurationParameterDefaultValue

diagram
type	xs:string
properties	content  simple
used by	element  ConfigurationParameter
source	<xs:element name=“ConfigurationParameterDefaultValue“ type=“xs:string“/>

element
ConfigurationParameterName

diagram
type	xs:string
properties	content  simple
used by	element  ConfigurationParameter
source	<xs:element name=“ConfigurationParameterName“ type=“xs:string“/>

element
ConfigurationParameters

diagram
properties	content  complex
children	ConfigurationParameter
used by	element  Component
source	<xs:element name=“ConfigurationParameters“> <xs:complexType> <xs:sequence> <xs:element ref=“ConfigurationParameter“ maxOccurs=“unbounded“/> </xs:sequence> </xs:complexType> </xs:element>

element
ConfigurationParameterType

diagram
type	xs:string
properties	content  simple
used by	element  ConfigurationParameter
source	<xs:element name=“ConfigurationParameterType“ type=“xs:string“/>

element

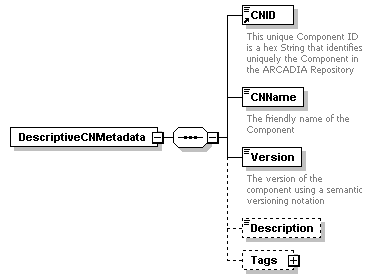

DescriptiveCNMetadata

diagram
properties	content  complex
children	CNID CNName Version Description Tags
used by	element  Component
source	<xs:element name=“DescriptiveCNMetadata“> <xs:complexType> <xs:sequence> <xs:element ref=“CNID“> <xs:annotation> <xs:documentation>This unique Component ID is a hex String that identifies uniquely the Component in the ARCADIA Repository</xs:documentation> </xs:annotation> </xs:element> <xs:element name=“CNName“ type=“xs:string“> <xs:annotation> <xs:documentation>The friendly name of the Component</xs:documentation> </xs:annotation> </xs:element> <xs:element name=“Version“ type=“xs:string“> <xs:annotation> <xs:documentation>The version of the component using a semantic versioning notation</xs:documentation> </xs:annotation> </xs:element> <xs:element name=“Description“ type=“xs:string“ minOccurs=“0“/> <xs:element name=“Tags“ minOccurs=“0“> <xs:complexType> <xs:sequence> <xs:element name=“Tag“ type=“xs:string“ maxOccurs=“unbounded“/> </xs:sequence> </xs:complexType> </xs:element> </xs:sequence> </xs:complexType> </xs:element>

element
DescriptiveCNMetadata/CNName

diagram
type	xs:string
properties	content  simple
annotation	documentation The friendly name of the Component
source	<xs:element name=“CNName“ type=“xs:string“> <xs:annotation> <xs:documentation>The friendly name of the Component</xs:documentation> </xs:annotation> </xs:element>

element
DescriptiveCNMetadata/Version

diagram
type	xs:string
properties	content  simple
annotation	documentation The version of the component using a semantic versioning notation
source	<xs:element name=“Version“ type=“xs:string“> <xs:annotation> <xs:documentation>The version of the component using a semantic versioning notation</xs:documentation> </xs:annotation> </xs:element>

element
DescriptiveCNMetadata/Description

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name=“Description“ type=“xs:string“ minOccurs=“0“/>

element
DescriptiveCNMetadata/Tags

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Tag
source	<xs:element name=“Tags“ minOccurs=“0“> <xs:complexType> <xs:sequence> <xs:element name=“Tag“ type=“xs:string“ maxOccurs=“unbounded“/> </xs:sequence> </xs:complexType> </xs:element>

element
DescriptiveCNMetadata/Tags/Tag

diagram
type	xs:string
properties	minOcc  1 maxOcc  unbounded content  simple
source	<xs:element name=“Tag“ type=“xs:string“ maxOccurs=“unbounded“/>

element

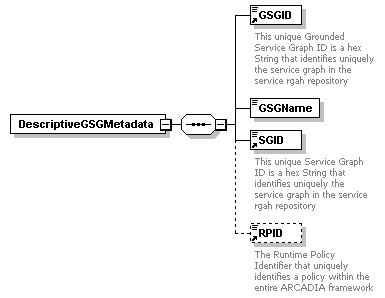

DescriptiveGSGMetadata

diagram
properties	content  complex
children	GSGID GSGName SGID RPID
used by	element  GroundedServiceGraph
source	<xs:element name=“DescriptiveGSGMetadata“> <xs:complexType> <xs:sequence> <xs:element ref=“GSGID“/> <xs:element name=“GSGName“ type=“xs:string“/> <xs:element ref=“SGID“/> <xs:element ref=“RPID“ minOccurs=“0“/> </xs:sequence> </xs:complexType> </xs:element>

element
DescriptiveGSGMetadata/GSGName

diagram
type	xs:string
properties	content  simple
source	<xs:element name=“GSGName“ type=“xs:string“/>

element
DescriptiveSGMetadata

diagram
properties	content  complex
children	SGID SGName SGDescription Tags
used by	element  ServiceGraph
source	<xs:element name=“DescriptiveSGMetadata“> <xs:complexType> <xs:sequence> <xs:element ref=“SGID“/> <xs:element name=“SGName“ type=“xs:string“/> <xs:element name=“SGDescription“ type=“xs:string“ minOccurs=“0“/> <xs:element name=“Tags“ minOccurs=“0“> <xs:complexType> <xs:sequence> <xs:element name=“Tag“ maxOccurs=“unbounded“/> </xs:sequence> </xs:complexType> </xs:element> </xs:sequence> </xs:complexType> </xs:element>

element
DescriptiveSGMetadata/SGName

diagram
type	xs:string
properties	content  simple
source	<xs:element name=“SGName“ type=“xs:string“/>

element
DescriptiveSGMetadata/SGDescription

diagram
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name=“SGDescription“ type=“xs:string“ minOccurs=“0“/>

element
DescriptiveSGMetadata/Tags

diagram
properties	minOcc  0 maxOcc  1 content  complex
children	Tag
source	<xs:element name=“Tags“ minOccurs=“0“> <xs:complexType> <xs:sequence> <xs:element name=“Tag“ maxOccurs=“unbounded“/> </xs:sequence> </xs:complexType> </xs:element>

element
DescriptiveSGMetadata/Tags/Tag

diagram
properties	minOcc  1 maxOcc  unbounded
source	<xs:element name=“Tag“ maxOccurs=“unbounded“/>

element
ECEPID

diagram
type	xs:string
properties	content  simple
used by	elements  ExposedChainableEndpoint GraphDependency
annotation	documentation This unique Exposed Chainable Endpoint ID is a hex String that identifies uniquely the chainable endpoint
source	<xs:element name=“ECEPID“ type=“xs:string“> <xs:annotation> <xs:documentation>This unique Exposed Chainable Endpoint ID is a hex String that identifies uniquely the chainable endpoint</xs:documentation> </xs:annotation> </xs:element>

element

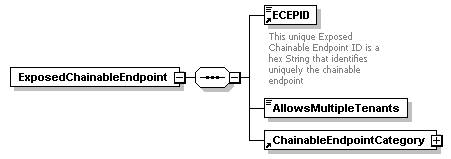

ExposedChainableEndpoint

diagram
properties	content  complex
children	ECEPID AllowsMultipleTenants ChainableEndpointCategory
used by	element  ExposedChainableEndpoints
source	<xs:element name=“ExposedChainableEndpoint“> <xs:complexType> <xs:sequence> <xs:element ref=“ECEPID“/> <xs:element name=“AllowsMultipleTenants“ type=“xs:boolean“/> <xs:element ref=“ChainableEndpointCategory“/> </xs:sequence> </xs:complexType> </xs:element>

element
ExposedChainableEndpoint/AllowsMultipleTenants

diagram
type	xs:boolean
properties	content  simple
source	<xs:element name=“AllowsMultipleTenants“ type=“xs:boolean“/>

element
ExposedChainableEndpoints

diagram
properties	content  complex
children	ExposedChainableEndpoint
used by	element  Component
source	<xs:element name=“ExposedChainableEndpoints“> <xs:complexType> <xs:sequence> <xs:element ref=“ExposedChainableEndpoint“ minOccurs=“0“ maxOccurs=“unbounded“/> </xs:sequence> </xs:complexType> </xs:element>

element
GNID

diagram
used by	elements  GroundedGraphNode/Dependency GroundedGraphNode
source	<xs:element name=“GNID“/>

element
GraphDependencies

diagram
properties	content  complex
source	<xs:element name=“GraphDependencies“> <xs:complexType> <xs:sequence/> </xs:complexType> </xs:element>

element

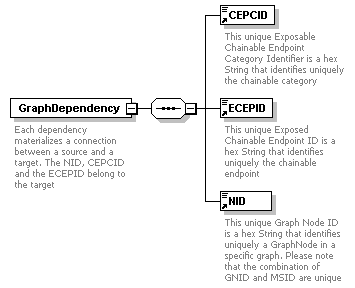

GraphDependency

diagram
properties	content  complex
children	CEPCID ECEPID NID
used by	element  GraphNode
annotation	documentation Each dependency materializes a connection between a source and a target. The NID, CEPCID and the ECEPID belong to the target
source	<xs:element name=“GraphDependency“> <xs:annotation> <xs:documentation>Each dependency materializes a connection between a source and a target. The NID, CEPCID and the ECEPID belong to the target</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence> <xs:element ref=“CEPCID“/> <xs:element ref=“ECEPID“/> <xs:element ref=“NID“/> </xs:sequence> </xs:complexType> </xs:element>

element
GraphNode

diagram
properties	content  complex
children	NID CNID GraphDependency
used by	element  GraphNodeDescriptor
source	<xs:element name=“GraphNode“> <xs:complexType> <xs:sequence> <xs:element ref=“NID“/> <xs:element ref=“CNID“/> <xs:element ref=“GraphDependency“ minOccurs=“0“ maxOccurs=“unbounded“/> </xs:sequence> </xs:complexType> </xs:element>

element
GraphNodeDescriptor

diagram
properties	content  complex
children	GraphNode
used by	element  ServiceGraph
source	<xs:element name=“GraphNodeDescriptor“> <xs:complexType> <xs:sequence> <xs:element ref=“GraphNode“ maxOccurs=“unbounded“/> </xs:sequence> </xs:complexType> </xs:element>

element

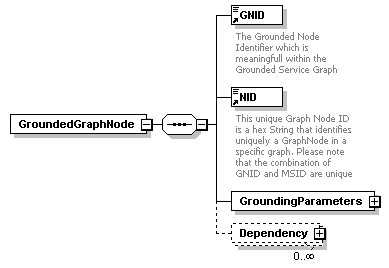

GroundedGraphNode

diagram
properties	content  complex
children	GNID NID GroundingParameters Dependency
used by	element  GroundedGraphNodeDescriptor
source	<xs:element name=“GroundedGraphNode“> <xs:complexType> <xs:sequence> <xs:element ref=“GNID“> <xs:annotation> <xs:documentation>The Grounded Node Identifier which is meaningfull within the Grounded Service Graph</xs:documentation> </xs:annotation> </xs:element> <xs:element ref=“NID“/> <xs:element name=“GroundingParameters“> <xs:complexType> <xs:sequence> <xs:element name=“IaaSDescriptor“ type=“xs:string“/> <xs:element name=“ReachableIP“ type=“xs:string“/> </xs:sequence> </xs:complexType> </xs:element> <xs:element name=“Dependency“ minOccurs=“0“ maxOccurs=“unbounded“> <xs:complexType> <xs:sequence> <xs:element ref=“GNID“/> <xs:element ref=“NID“/> </xs:sequence> </xs:complexType> </xs:element> </xs:sequence> </xs:complexType> </xs:element>

element
GroundedGraphNode/GroundingParameters

diagram
properties	content  complex
children	IaaSDescriptor ReachableIP
source	<xs:element name=“GroundingParameters“> <xs:complexType> <xs:sequence> <xs:element name=“IaaSDescriptor“ type=“xs:string“/> <xs:element name=“ReachableIP“ type=“xs:string“/> </xs:sequence> </xs:complexType> </xs:element>

element
GroundedGraphNode/GroundingParameters/IaaSDescriptor

diagram
type	xs:string
properties	content  simple
source	<xs:element name=“IaaSDescriptor“ type=“xs:string“/>

element
GroundedGraphNode/GroundingParameters/ReachableIP

diagram
type	xs:string
properties	content  simple
source	<xs:element name=“ReachableIP“ type=“xs:string“/>

element

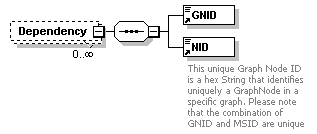

GroundedGraphNode/Dependency

diagram
properties	minOcc  0 maxOcc  unbounded content  complex
children	GNID NID
source	<xs:element name=“Dependency“ minOccurs=“0“ maxOccurs=“unbounded“> <xs:complexType> <xs:sequence> <xs:element ref=“GNID“/> <xs:element ref=“NID“/> </xs:sequence> </xs:complexType> </xs:element>

element
GroundedGraphNodeDescriptor

diagram
properties	content  complex
children	GroundedGraphNode
used by	element  GroundedServiceGraph
source	<xs:element name=“GroundedGraphNodeDescriptor“> <xs:complexType> <xs:sequence> <xs:element ref=“GroundedGraphNode“ maxOccurs=“unbounded“/> </xs:sequence> </xs:complexType> </xs:element>

element
GroundedServiceGraph

diagram
properties	content  complex
children	DescriptiveGSGMetadata GroundedGraphNodeDescriptor
source	<xs:element name=“GroundedServiceGraph“> <xs:complexType> <xs:sequence> <xs:element ref=“DescriptiveGSGMetadata“/> <xs:element ref=“GroundedGraphNodeDescriptor“/> </xs:sequence> </xs:complexType> </xs:element>

element
GSGID

diagram
type	xs:string
properties	content  simple
used by	element  DescriptiveGSGMetadata
annotation	documentation This unique Grounded Service Graph ID is a hex String that identifies uniquely the service graph in the service rgah repository
source	<xs:element name=“GSGID“ type=“xs:string“> <xs:annotation> <xs:documentation>This unique Grounded Service Graph ID is a hex String that identifies uniquely the service graph in the service rgah repository</xs:documentation> </xs:annotation> </xs:element>

element
HigherIsBetter

diagram
type	xs:boolean
properties	content  simple
used by	element  CNMetric
source	<xs:element name=“HigherIsBetter“ type=“xs:boolean“/>

element
MaxValue

diagram
type	xs:string
properties	content  simple
used by	element  CNMetric
source	<xs:element name=“MaxValue“ type=“xs:string“/>

element
MetricDescription

diagram
type	xs:string
properties	content  simple
used by	element  CNMetric
source	<xs:element name=“MetricDescription“ type=“xs:string“/>

element
MetricName

diagram
type	xs:string
properties	content  simple
used by	element  CNMetric
source	<xs:element name=“MetricName“ type=“xs:string“/>

element
MetricValueType

diagram
type	restriction of xs:string
properties	content  simple
used by	element  CNMetric
facets	Kind  Value  Annotation enumeration  Integer enumeration  Float enumeration  String
source	<xs:element name=“MetricValueType“> <xs:simpleType> <xs:restriction base=“xs:string“> <xs:enumeration value=“Integer“/> <xs:enumeration value=“Float“/> <xs:enumeration value=“String“/> </xs:restriction> </xs:simpleType> </xs:element>

element
MinValue

diagram
type	xs:string
properties	content  simple
used by	element  CNMetric
source	<xs:element name=“MinValue“ type=“xs:string“/>

element
MutableAfterStartup

diagram
type	xs:boolean
properties	content  simple
used by	element  ConfigurationParameter
source	<xs:element name=“MutableAfterStartup“ type=“xs:boolean“/>

element
NID

diagram
type	xs:string
properties	content  simple
used by	elements  GroundedGraphNode/Dependency GraphDependency GraphNode GroundedGraphNode
annotation	documentation This unique Graph Node ID is a hex String that identifies uniquely a GraphNode in a specific graph. Please note that the combination of GNID and MSID are unique
source	<xs:element name=“NID“ type=“xs:string“> <xs:annotation> <xs:documentation>This unique Graph Node ID is a hex String that identifies uniquely a GraphNode in a specific graph. Please note that the combination of GNID and MSID are unique</xs:documentation> </xs:annotation> </xs:element>

element
RequiredChainableEndpoints

diagram
properties	content  complex
children	ChainableEndpointCategory
used by	element  Component
source	<xs:element name=“RequiredChainableEndpoints“> <xs:complexType> <xs:sequence> <xs:element ref=“ChainableEndpointCategory“ minOccurs=“0“ maxOccurs=“unbounded“/> </xs:sequence> </xs:complexType> </xs:element>

element
RPID

diagram
type	xs:string
properties	content  simple
used by	elements  DescriptiveGSGMetadata RuntimePolicy
annotation	documentation The Runtime Policy Identifier that uniquely identifies a policy within the entire ARCADIA framework
source	<xs:element name=“RPID“ type=“xs:string“> <xs:annotation> <xs:documentation>The Runtime Policy Identifier that uniquely identifies a policy within the entire ARCADIA framework</xs:documentation> </xs:annotation> </xs:element>

element

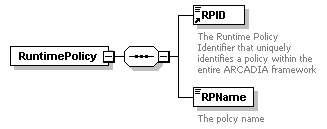

RuntimePolicy

diagram
properties	content  complex
children	RPID RPName
used by	element  RuntimePolicyDescriptor
source	<xs:element name=“RuntimePolicy“> <xs:complexType> <xs:sequence> <xs:element ref=“RPID“/> <xs:element name=“RPName“ type=“xs:string“> <xs:annotation> <xs:documentation>The polcy name</xs:documentation> </xs:annotation> </xs:element> </xs:sequence> </xs:complexType> </xs:element>

element
RuntimePolicy/RPName

diagram
type	xs:string
properties	content  simple
annotation	documentation The polcy name
source	<xs:element name=“RPName“ type=“xs:string“> <xs:annotation> <xs:documentation>The polcy name</xs:documentation> </xs:annotation> </xs:element>

element
RuntimePolicyDescriptor

diagram
properties	content  complex
children	RuntimePolicy
used by	element  ServiceGraph
source	<xs:element name=“RuntimePolicyDescriptor“> <xs:complexType> <xs:sequence> <xs:element ref=“RuntimePolicy“ maxOccurs=“unbounded“/> </xs:sequence> </xs:complexType> </xs:element>

element
ServiceGraph

diagram
properties	content  complex
children	DescriptiveSGMetadata GraphNodeDescriptor RuntimePolicyDescriptor
source	<xs:element name=“ServiceGraph“> <xs:complexType> <xs:sequence> <xs:element ref=“DescriptiveSGMetadata“/> <xs:element ref=“GraphNodeDescriptor“/> <xs:element ref=“RuntimePolicyDescriptor“ minOccurs=“0“/> </xs:sequence> </xs:complexType> </xs:element>

element
SGID

diagram
type	xs:string
properties	content  simple
used by	elements  DescriptiveGSGMetadata DescriptiveSGMetadata
annotation	documentation This unique Service Graph ID is a hex String that identifies uniquely the service graph in the service rgah repository
source	<xs:element name=“SGID“ type=“xs:string“> <xs:annotation> <xs:documentation>This unique Service Graph ID is a hex String that identifies uniquely the service graph in the service rgah repository</xs:documentation> </xs:annotation> </xs:element>

element
UnitOfMeasurement

diagram
type	xs:string
properties	content  simple
used by	element  CNMetric
source	<xs:element name=“UnitOfMeasurement“ type=“xs:string“/>

XML Schema documentation generated by

XMLSpy

Schema Editor

http://www.altova.com/xmlspy
